Drones search out Skylarks on HS2’s route

Listen to this article
Thermal image showing a skylark’s nest as a bright ‘warm’ spot.

The HS2 route passes through some lovely countryside. That’s been one are of complaint from naturalists and ecologists, who don’t want a railway interfering with the view.

However, High Speed Two Limited is well aware of its responsibilities and the need to cause the minimum amount of damage and harm as it builds Britain’s essential new railway.

A good example is the need to monitor Skylarks in order to protect the species at the site of the Chiltern tunnel portal, near the M25 in Buckinghamshire.

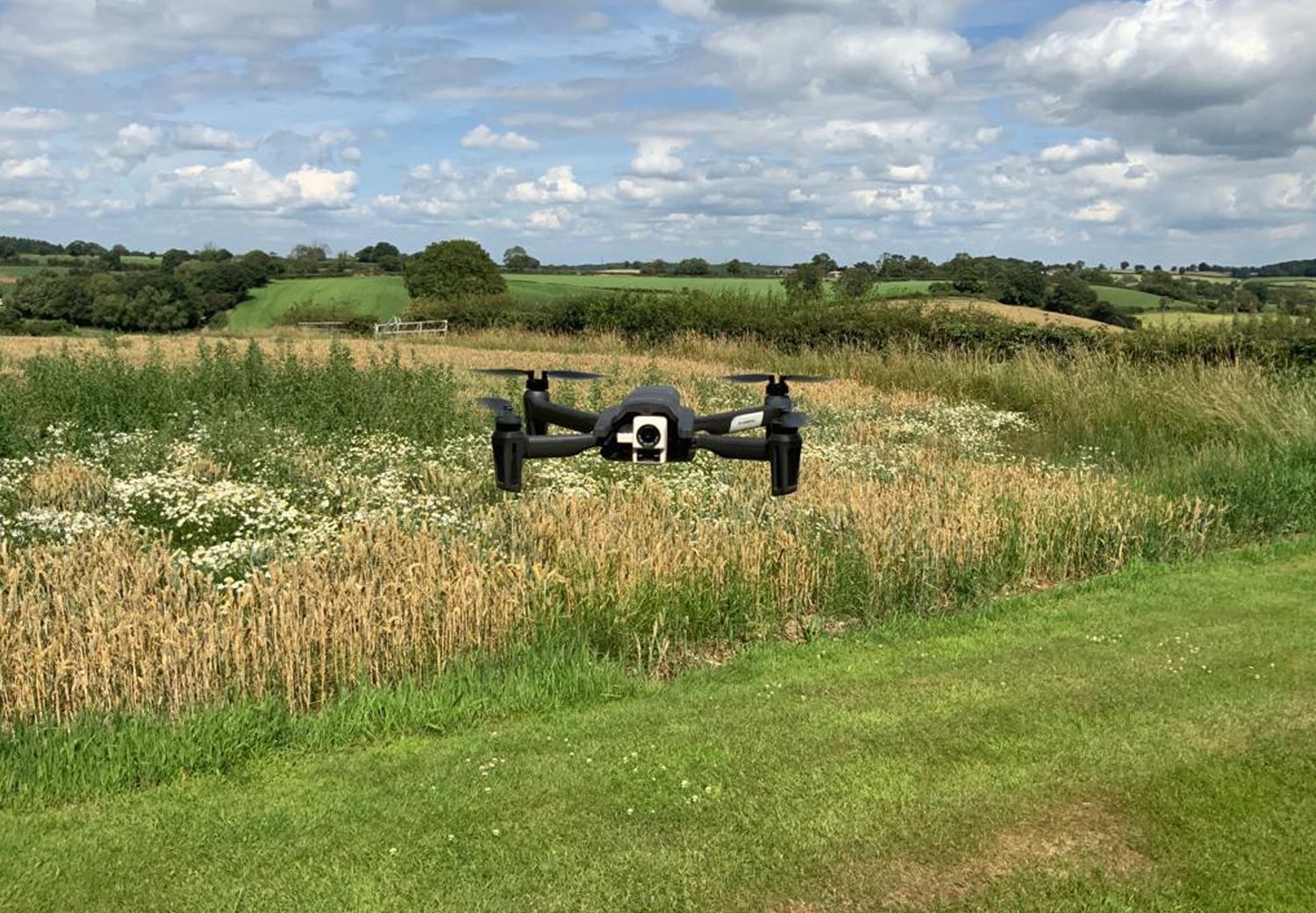

Roadbridge, a sub-contractor to Align JV – the main works civils contractor that is delivering the portion of HS2 that includes the Chiltern Tunnel, has successfully adopted thermal drone imaging to monitor Skylarks in order to dramatically increase the accuracy of environmental surveys and enable faster and more effective results for ecologists working on the project.

Monitoring nesting bird populations is crucial, providing accurate information which results in more effective ecological mitigation to protect the natural environment around work sites. At twelve metres above ground level, the drone captures approximately a nine square metre area, providing a reduction in search times, and a clear perspective from a 90-degree view of the ground below.

Using a thermal camera, the drone can calibrate to the ground temperature and other objects to lock onto a heat source and identify the bird nests. This includes birds on the nest, eggs on the nest and birds sheltering on the ground.

Even in closeup, Skylark eggs are hard to spot.

Exclusion zones are then put on Computer Aided Design (CAD) drawings and into the Global Positioning System (GPS) of machinery working on site to let operators know when they are working near exclusion zones, to protect nests and allow works to progress safely.

During the initial trial, which Roadbridge conducted in association with Matt Dutton from Drone Media Productions, five nests were found in three hours of drone survey time using one drone operator and one ecologist, compared to one nest found in 20 hours of survey time using traditional methods. Traditional surveys require ecologists to observe the Skylarks flying then running to their nest, and to use walking transect surveys to accurately locate them, which can be invasive and sometimes ineffective, resulting in much larger exclusion zones being required.

HS2 continues to undertake one of the largest ecological survey programmes in the UK, with some of the country’s most experienced and leading ecological consultants working on the project. Surveys provide detailed information on the impacts of the scheme and enable the best mitigation to be adopted to reduce impacts and develop opportunities to leave a better natural environment legacy.

HS2’s environment director Peter Miller said: “HS2 places a huge emphasis on ecological protection and we actively encourage our supply chain to use innovative technologies like this to refine and improve the way we collect information on species.

“As well as delivering a low carbon railway, that will help reduce transport pollution and improve air quality, HS2 is committed to creating a Green Corridor of richer, more diverse and better-connected landscapes along the railway. The Colne Valley area, where the drone surveys took place, is renowned for its rich landscape and biodiversity, so proactive environmental survey and monitoring is crucial in order to protect the local ecology.”

Nest on drone camera – The drone sends video images back to the operator who can then identify the skylark’s nests.

Vincent Ryan, environmental advisor at Roadbridge, added: “Skylark populations have dramatically declined since the 1970s predominately due to changes in agricultural practices and reduced areas of grassland to breed in.

“As ground-nesting birds, Skylarks are one of the most difficult birds to survey, and in a construction environment it is very important to be able to accurately locate their small and well camouflaged nests in order to mitigate appropriately.

“One of the contributing factors that influenced us to find innovative alternatives to ecological surveying and mitigation was the Covid-19 pandemic, which led to restrictions on site to carry out surveys. Our solution was to use the advanced technology of thermal imaging drones, and we were pleased to find they provided a highly accurate and faster survey method than traditional survey techniques, allowing us to find nests in grassland areas and monitor fledging success with minimal disturbance.”
